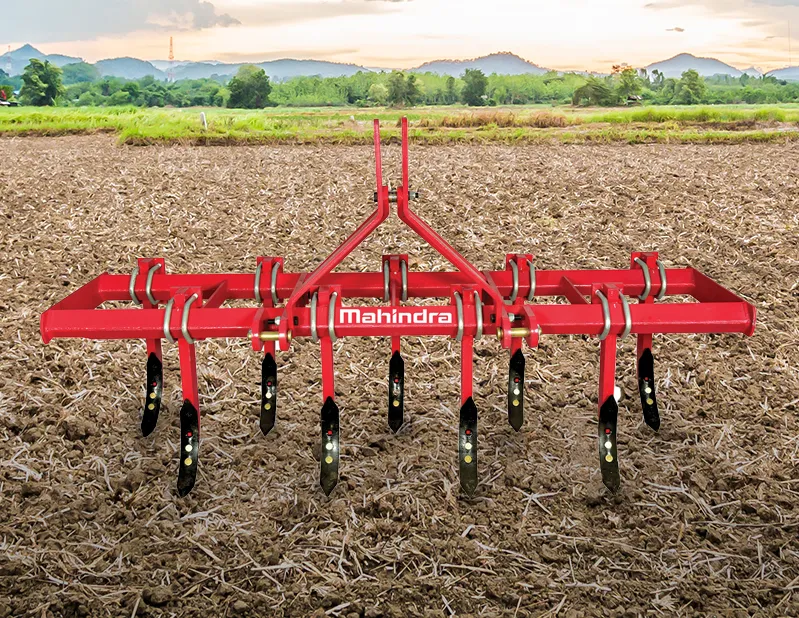

Mahindra Rigid Cultivator - 9 Tynes
Introducing the Mahindra 9 tyne Rigid Cultivator - the ultimate solution for effortless soil preparation! This cultivator is designed to tackle even the toughest soil conditions with ease. Featuring a robust construction with surface protection through powder coating and superior strength achieved through MIG welding, this cultivator is built to last. With its versatile design, you can use it for various crop types and achieve exceptional seed bed preparation quickly and economically. The tempered and reversible shovels provide unmatched durability and multi-use functionality, saving you time and money.
SPECIFICATIONS
Know More About the Specification
Mahindra Rigid Cultivator - 9 Tynes
| Product Name | Tractor Power Required (kW/HP) | Number of tynes | Frame (L X B X H) (mm) | Frame Supports | Thickness of Tynes (mm) | Tynen plate (mm) | frame bolt (mm) | Nut | Linkage 3 Point (mm) | Shovel | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Rigid Cultivator U-Clamp (Medium Duty - 9 Tynes) | 26- 35.5 (30 - 40 HP) | 9 | Angle box 70 X 70 X 6 | 7 | 32 | 16 | U-bolt -18 | Nylock | Front 65 x 16 Back 50 x 16 | Forged | 212 kg ± 3% |
| Rigid Cultivator U-Clamp (Heavy Duty - 9 Tynes) | 28- 35.5 (40- 45 HP) | 9 | Angle box 70 X 70 X 6 | 7 | 40 | 16 | U-bolt -18 | Nylock | Front 65 x 16 Back 50 x 16 | Forged | 290 kg ± 3% |
